Metal Tile Roof Roll Forming Machine

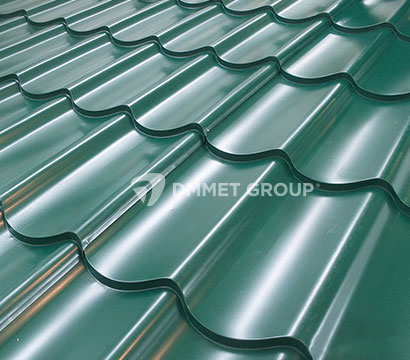

DMMET GROUP has extensive experience in metal tile profiles and a broad overview of manufacturing technology, and offers wide range of metal roof tile designs. We can also create completely new product designs and innovations according to specific customer requirements.

Material thickness: 0.3-0.7mm
Material width: depend on profile
Decoiler: manual passive uncoiler ( customer can choose hydraulic decoiler )
Weight capacity of uncoiler: 5 Ton
Forming Station: 12 stations ( depend on profile )
Drive of metal tile roll forming machine: 1.2' chain transmission
Main forming power: 5.5KW
Hydraulic power: 4 KW
Roller material: 45# forge steel , polished and coated with 0.05mm hard chrome
Principal axis diameter: 86mm ( dpend on profile )
PLC of metal tile roll forming machine: Siemens S7
Cutting blade material: SW 2379
Auto Stacker Unit Pnomatic System
