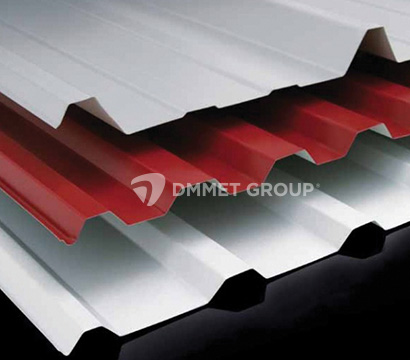

Trapezoidal Sheet Roll Forming Machine

Coil Metarial
Coil : Color Steel, Galvanised
Coil Thickless : 0,3 - 0,8 mm
Coil Width : 1000 - 1200 - 1250 mm, Customized
Yield Strenth : 250 - 350 Mpa

Decoiler and Coil Car
Decoiller Type : Manual or hydraulic or automatic type
Weight Capacity : 10T,

Main Roll Forming
Forming Station : 18 forming stations, depend on profiles
Roller Material : High grade 45# steel, surface with hard chrome 0.05 mm
Shaft Diameter : 86 mm
Drive Type : Chain Drive
Forming Speed : 0-25 m/min
Main Power : 7.5 KW

FLY Cutting Device
Cutting Type : Hydraulic cutting
Cutting Die Material : SW 2375 steel, HRC58-62
Cutting Tolerance: +/- 1mm (10m)

Electrical System
PLC Brand : Siemens S7 brand
Inverter Brand : ABB brand
Encoder : OMRON brand
Touch Screen Siemens brand

Hydraulic System
Hydraulic Station : Famous TURKEY Brand
Hydraulic Power : 4KW

Auto Stacker Max 13000 mm
Table Type : Pnomatik System Function of Table : To support the profile sheets after cutting
